Overview:

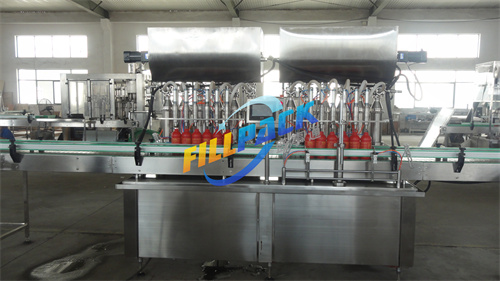

This oil filling line is specially made for all kinds of oil products like coconut oil, lube oil, edible oil, olive oil, etc. All the contacted part of the product is high-quality stainless steel. The machine adopts piston pumps for filling with non-drip filling nozzles. it can fill all of the bottles in one filling machine, with quick speed and high precision.
Technical parameter：
|
Item |
Piston pump filling machine |
|
Filling nozzle |
2, 4, 6, 8, 10, 12, 16, 20 |
|
Filling system |
Piston pump |
|
Filling range |
50-250ml, 100-1000ml, 1-5L (customized) |
|
Filling speed |
1,000-8,000 bottles/hour |
|
Filling precision |
±1% |
|
Yied of capping |
≥99% |
|
Power |
220/380V 50/60Hz 1.5Kw |
|
Air pressure range |
0.6Mpa |
|
Weight |
800Kg |
|
Machine side |
L1500*W1200*H1800 (L*W*Hmm) |
Configuration:
