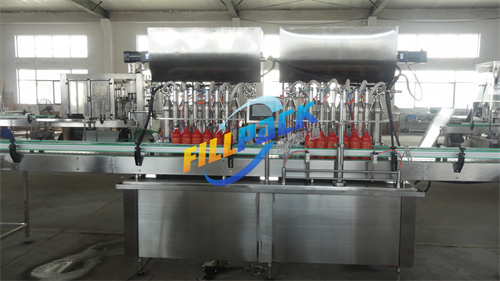

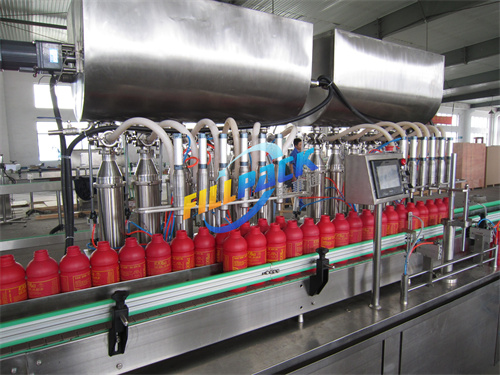

Piston Pump Filling Machine, Bottle Filler Machine

Overview:

This piston pump filling machine is specially made for all kinds of liquid and semi-liquid materials, such as sauce, jam, shampoo, detergent, oil addictive, chemical products, etc. All the contacted part of the product is high-quality stainless steel. The machine adopts piston pump for filling. it can fill all of the bottles in one filling machine, with quick speed and high precision.

Characteristic:

Suitable filling material

This machine adopts piston pump, which is suitable for all kinds of liquid and semi-liquid materials, with high filling speed and high filling precision.

For filling corrosive, the position pump will be made by SS316L with an exhausting fan to drain the corrosive air outside of the workshop.

Main component:

All use word-class famous brands. All the material is stainless steel 304/316L  PLC Delta (Taiwan)

Human-computer touch screen Delta (Taiwan) Cylinder Airtac (Taiwan) Photo sensor Omron (Japan)

Controlling system

The machine adopts full-auto PLC and a human-computer touch screen control system. For different volumes adjustment, we set several procedures, mode 1, mode 2, mode 3, and mode 4``` Operators do not need too much-complicated adjustments, the filling machine can switch between the three models easily.

Different volume adjustment

By inputting different filling quantities in HMI, it also can fill all the products from big volume to small volume ml.

Bottle position correcting device

To ensure the bottles and filling nozzles are in the correct position, we add a special bottle position device to make the whole filling process smooth and stable. No bottle no filling.

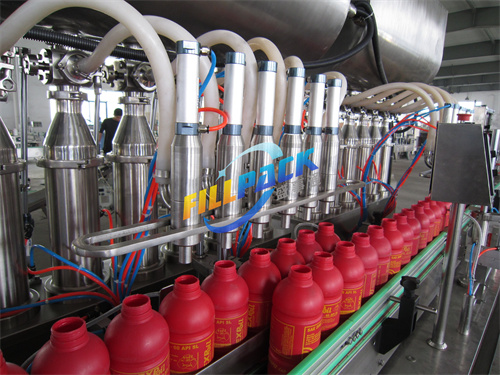

Filling nozzles

The filling nozzles are specialized made: anti-drop & anti-drawing. Also, the filling nozzles will come into the bottle bottom and move up slowly for foamy products like detergent which is named the submersible filling method.

Cleaning

The pump uses quick-fit removal Structure: easy cleaning and disinfection.

Technical parameter：

Configuration:

Application

This piston pump filling machine is specially made for all kinds of liquid and semi-liquid materials, such as sauce, jam, shampoo, detergent, oil addictive, chemical products, etc.
